Description

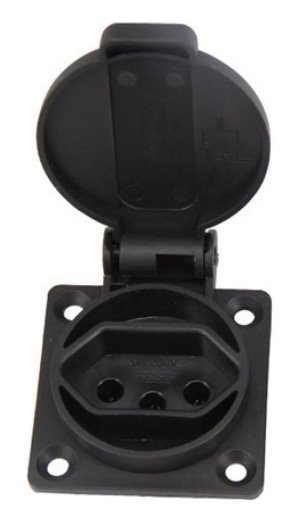

The 070201 is a panel socket in the Brazilian & South African Standard range — 20A 250V, 2P+E, IP44. The catalogue states no standard number for these two series, so no standard is claimed here. Ratings are taken from the manufacturer catalogue.
Specifications
| Model | 070201 |
|---|---|
| Product type | Panel socket |
| Rated current | 20A |
| Rated voltage | 250V |
| Interface | 2P+E |
| Protection degree | IP44 |
| Cover | Round cover |
| Mounting | Surface mount |
| Dimensions | 50 × 50 mm |
| Insulation resistance | ≥ 5 MΩ |
| Dielectric strength | AC 2000V 50 Hz |
| Housing material | Engineering nylon / thermoplastic, flame retardant |
Description
070201 is a panel socket built for panel and enclosure mounting. The body is moulded in engineering nylon / thermoplastic and is chemical resistant, impact resistant and flame retardant. Terminal connections accept screw or tab fixing as required by the installation.
Ratings and dimensions are taken from the manufacturer catalogue. Brazilian: regional standard format · South African: regional standard format
Applications
- Panel boards for Brazilian and South African installations
- Industrial machinery and generator sets
- Commercial building services
FAQ
What is the rated current and voltage of the Brazilian & South African Standard panel socket 070201?
The 070201 is rated 20A 250V with a 2P+E interface and IP44 protection degree.
What does model number 070201 refer to?
070201 is the manufacturer catalogue number for this panel socket in the Brazilian & South African Standard range.
Which standard does the 070201 follow?
The catalogue states no standard number for these two series, so no standard is claimed here. Ratings are taken from the manufacturer catalogue.
Can I order a sample or get a quotation for model 070201?
Yes. Send the model number 070201 and your target quantity through the inquiry form and our sales team will reply with pricing and lead time.
Ordering & support
Model 070201. Mixed orders and OEM branding are available. Request a quotation or contact our sales engineers with your target quantity and destination market.
