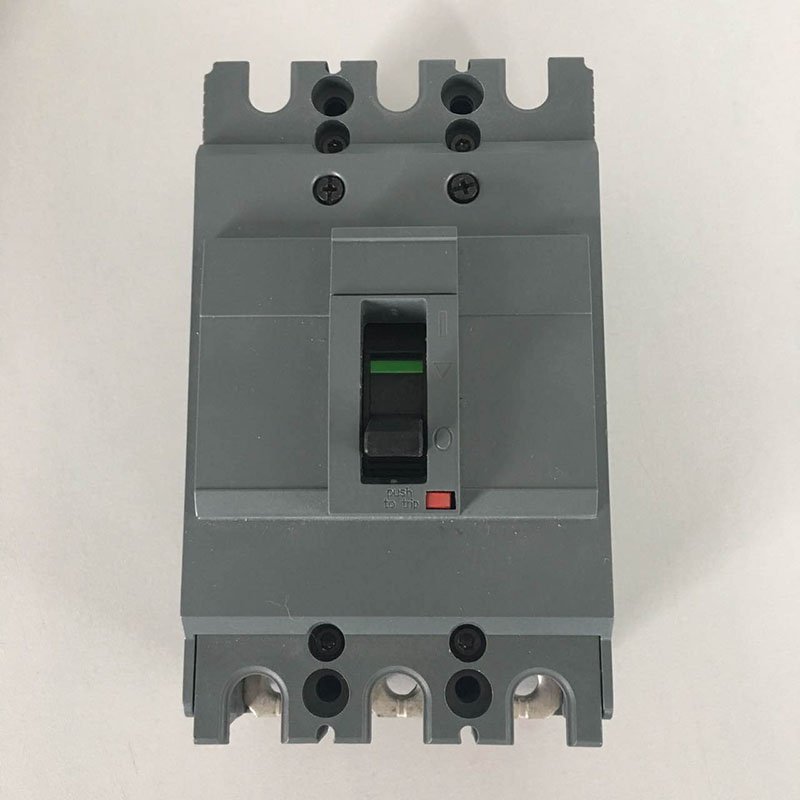

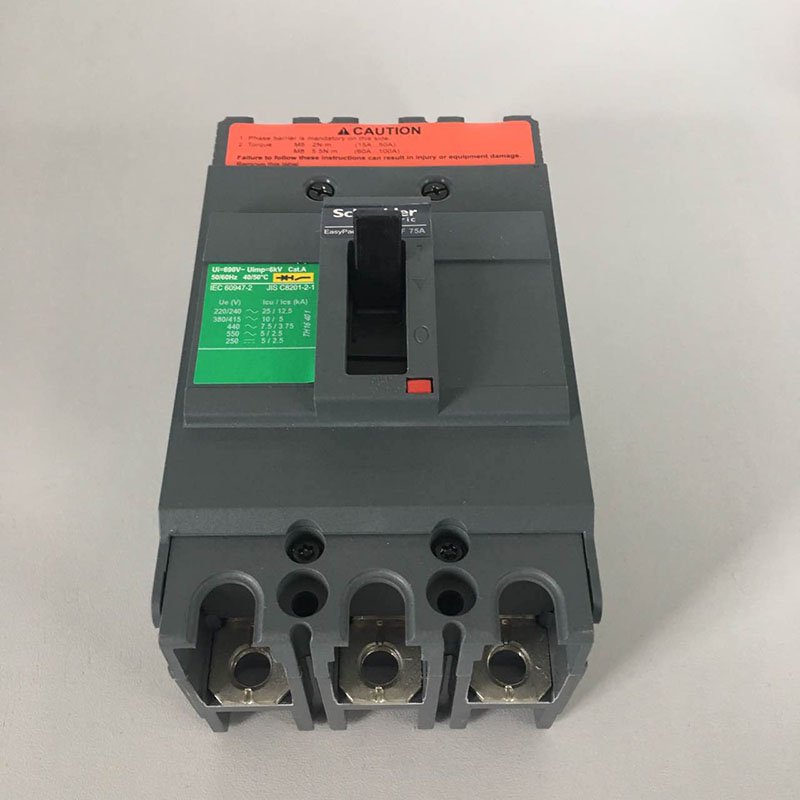

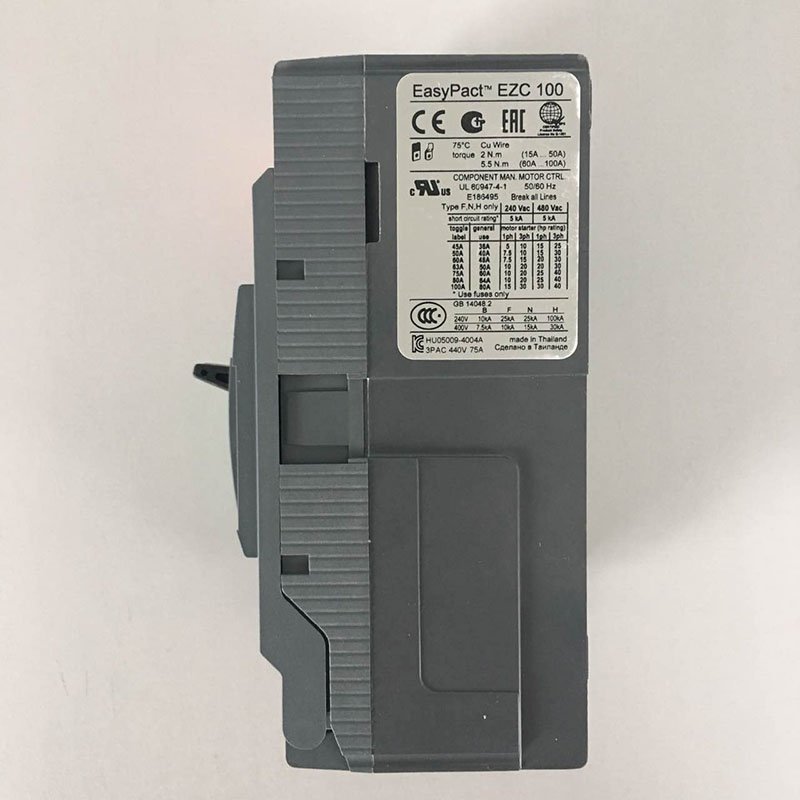

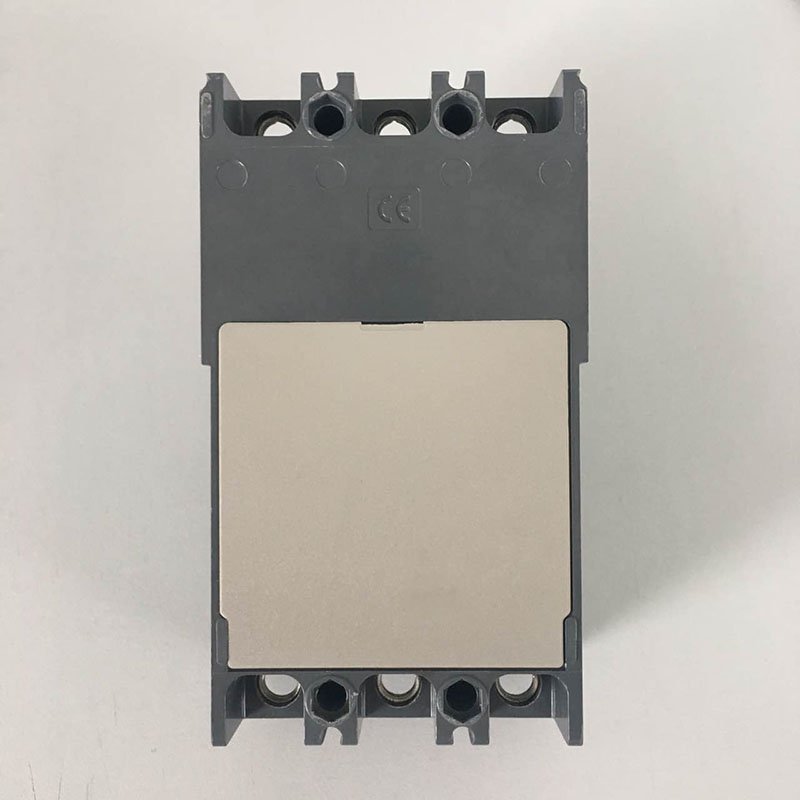

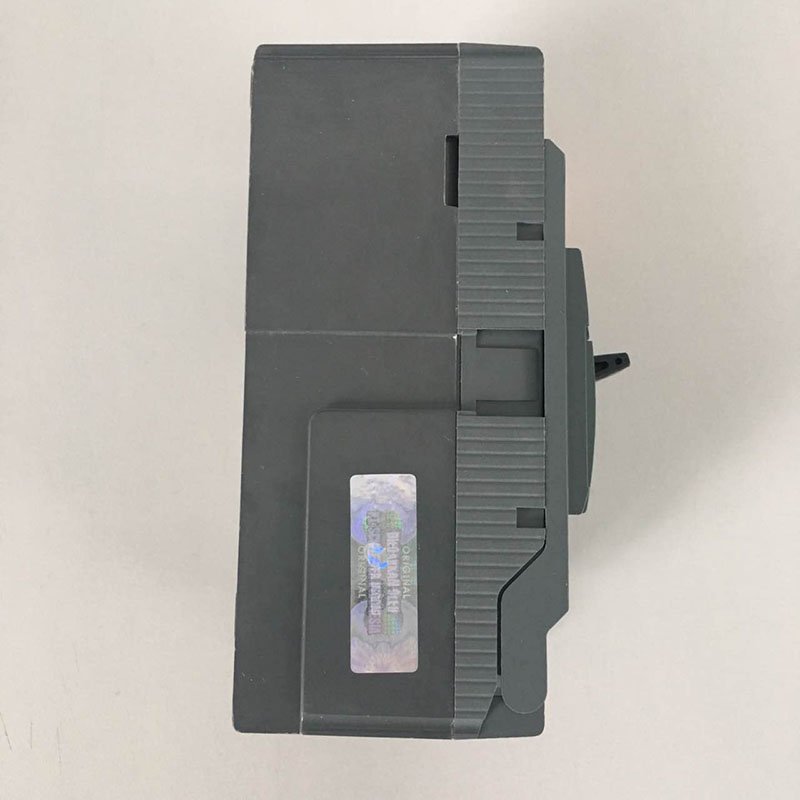

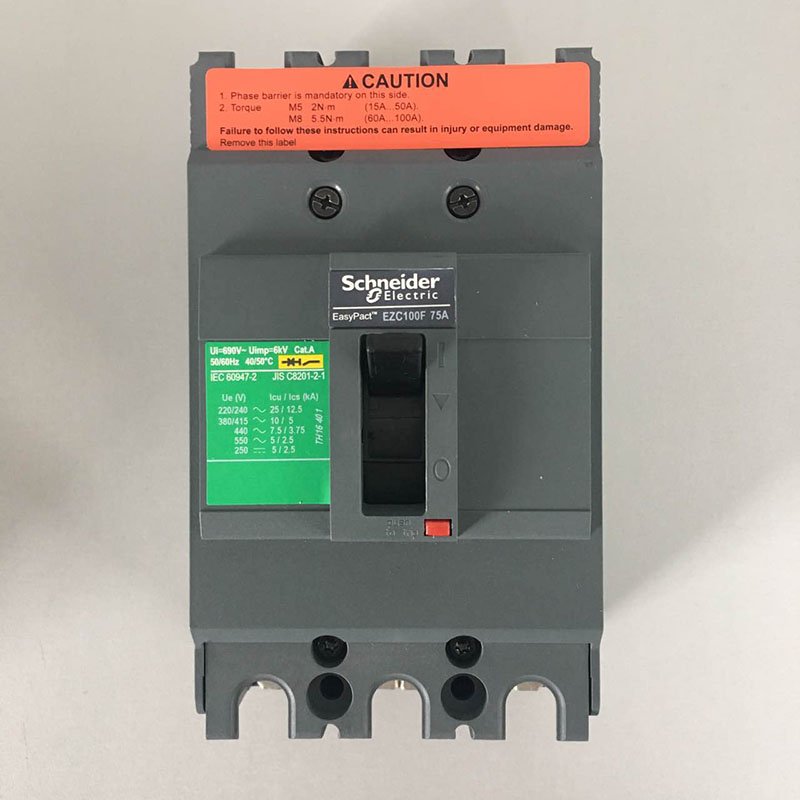

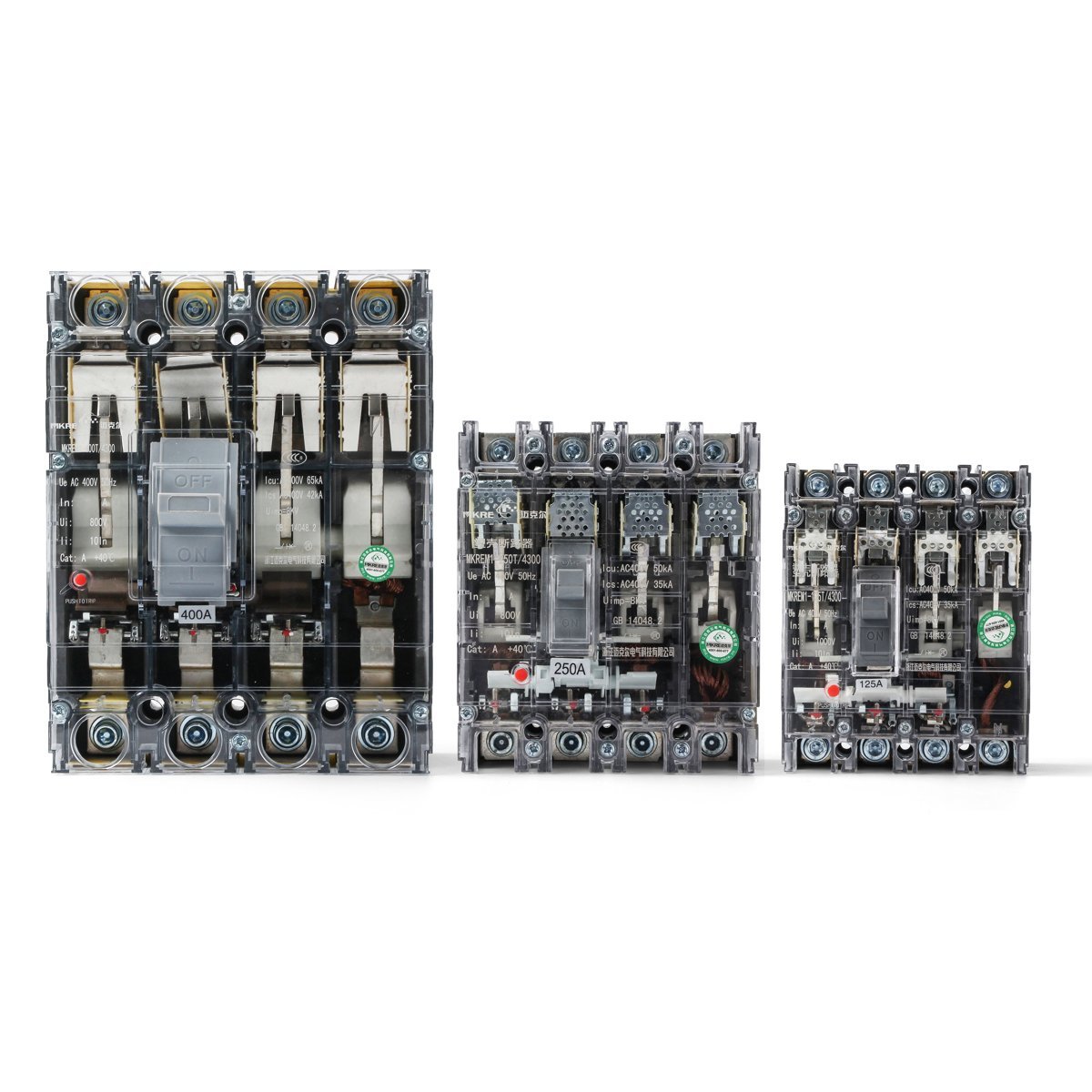

EZC100F Moulded Case Circuit Breaker – 1P/2P/3P/4P, 15A–100A
The LAKINELE EZC100F is a compact, fixed-type moulded case circuit breaker designed for power distribution applications. Available in 1P to 4P configurations with current ratings from 15A to 100A, it provides reliable thermal-magnetic protection for industrial and commercial electrical systems.
Key Features
- Frame size: 100A, available in 1P/2P/3P/4P
- Current range: 15A, 20A, 25A, 32A, 40A, 50A, 63A, 75A, 80A, 100A
- Breaking capacity (F type): 10kA at 380/415V, 25kA at 220-240V
- Rated insulation voltage: 690V AC
- Rated impulse withstand voltage: 6kV
- Rated operational voltage: 550V AC / 250V DC
- Thermal-magnetic trip unit (TM-D)
- Fixed mounting, front connections
- Toggle control type
- Category A utilization
- Suitability for isolation: Yes
- IP20 protection degree
- IEC 60947-2 compliant
- CE / ISO 9001 certified
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current (In) | 15A / 20A / 25A / 32A / 40A / 50A / 63A / 75A / 80A / 100A |
| Poles | 1P, 2P, 3P, 4P |
| Rated Insulation Voltage (Ui) | 690V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6kV |
| Rated Operational Voltage (Ue) | 550V AC / 250V DC |
| Breaking Capacity Code | F |
| Icu at 380/415V | 10kA |
| Icu at 220-240V | 25kA |
| Ics at 380/415V | 5kA |
| Trip Unit | TM-D (Thermal-Magnetic) |
| Protection | Overload + Short-circuit |
| Utilization Category | A |
| Mechanical Durability | 8,500 cycles |
| Electrical Durability | 1,500 cycles |
| IP Rating | IP20 |
| Mounting | Fixed, front connections |
| Standards | IEC 60947-2 |
| Certifications | CE, ISO 9001 |
Applications
- Industrial power distribution boards
- Commercial building electrical systems
- Motor protection circuits
- Lighting distribution panels
- OEM electrical equipment integration
Ordering Information
When ordering, please specify:
- Model: EZC100F
- Number of poles (1P / 2P / 3P / 4P)
- Rated current (15A to 100A)
- Breaking capacity type: F (10kA at 415V)
