Description

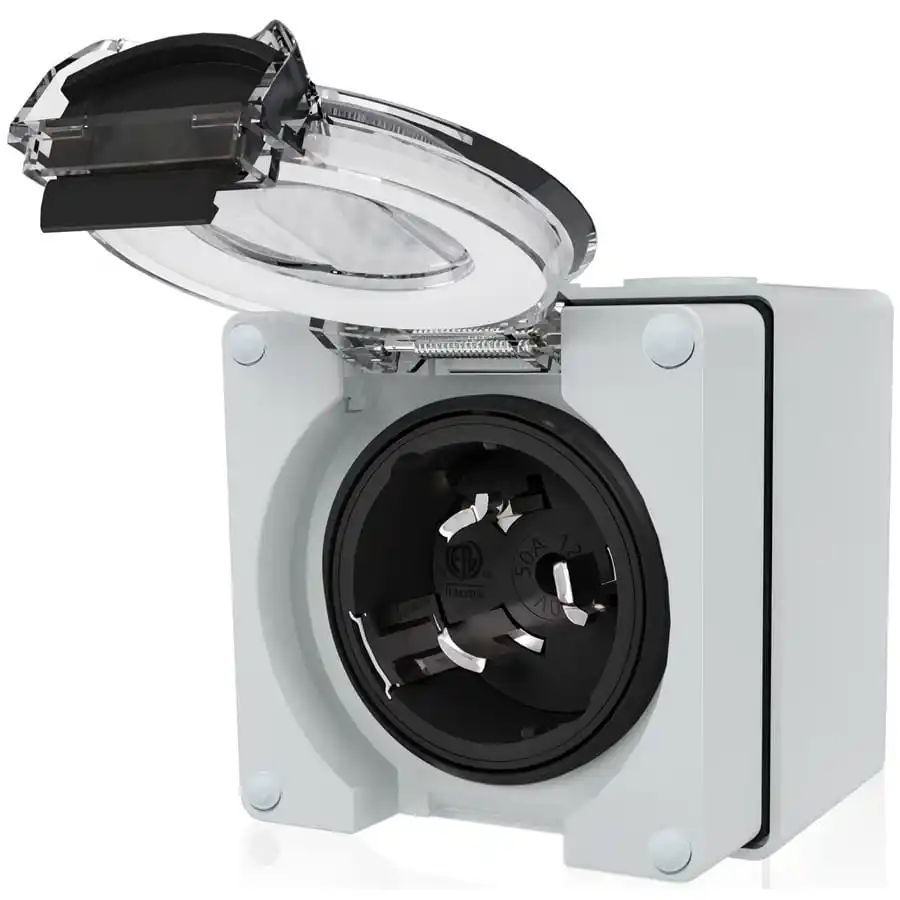

The SS2-50P is a plug / inlet box in the American NEMA series, built into an IP66 surface-mount enclosure. It carries a NEMA SS2-50P configuration rated 50A / 125V/250V (3 pole, 4 wire, grounding type), and uses a flame-retardant, UV-resistant polycarbonate housing with a lockable transparent cover so the pin configuration can be checked without opening the lid.
Key specifications
Key features
- ✓ IP66 rated once the plug is removed and the cover is closed and locked
- ✓ Flame-retardant, UV-resistant polycarbonate housing for outdoor and washdown locations
- ✓ Transparent cover — the pin configuration can be identified without opening it
- ✓ Lockable cover keeps the socket sealed when the plug is pulled out
- ✓ Surface-mount single-gang enclosure with 2 × M25×1.5 and 1 × M32×1.5 conduit entries
- ✓ CE & RoHS compliant
Enclosure & installation
- 1. Entries in the enclosure must be machined with a hole saw or a similar tool.
- 2. When mounting, the 220/10 caps must be glued into the bosses to keep the IP rating.
- 3. Tighten the cover screws to 0.5 N·m. If this is exceeded the IP rating may be invalid.
- 4. The conduit entry should be edged with a suitable sealant such as PVC glue.
- 5. Enclosure: 84.00 mm × 101.00 mm face, mounting hole centres 40.50 mm, conduit entries 2 × M25×1.5 and 1 × M32×1.5.
Compliance & ordering
Supplied CE & RoHS compliant. Minimum order quantity 36 pcs per model; sample lead time 3-5 days; production lead time 15-25 days. Enquiry-based pricing — tell us the models and quantities you need and we will quote.
Frequently asked questions
What is the SS2-50P?
The SS2-50P is an IP66 surface-mount plug box with a NEMA SS2-50P configuration rated 50A and 125V/250V (3 pole, 4 wire, grounding type). The ordering code is SS2-50P-BOX.
Is the SS2-50P waterproof?
Yes. Once the plug is removed and the cover is closed and locked, the enclosure forms protection degree IP66 against dust and water jets.
Which wires does the SS2-50P use?
3 pole, 4 wire, grounding type. The enclosure has 2 × M25×1.5 and 1 × M32×1.5 conduit entries for cable entry.
What is the minimum order quantity?
36 pcs per model. Sample lead time is 3-5 days and production lead time is 15-25 days.
Does the SS2-50P come with certification?
The enclosure is supplied CE & RoHS compliant. Contact us if you need the declaration of conformity for your customs or compliance file.
