Description

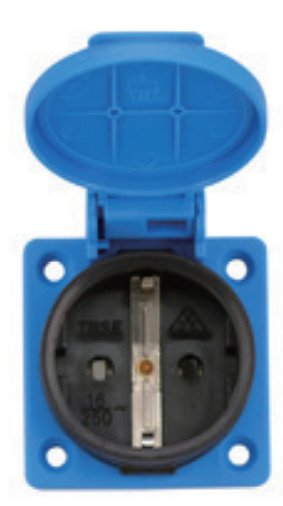

The 050301 is a panel socket in the German Standard (Schuko) range — 16A 250V, 2P+E, IP54. Designed to the Schuko (German standard) panel-socket format.
Specifications
| Model | 050301 |
|---|---|
| Product type | Panel socket |
| Rated current | 16A |
| Rated voltage | 250V |
| Interface | 2P+E |
| Protection degree | IP54 |
| Cover | Round cover |
| Mounting | Surface mount |
| Shutter | Without shutter |
| Dimensions | 51.5 × 51.5 mm |
| Insulation resistance | ≥ 5 MΩ |
| Dielectric strength | AC 2000V 50 Hz |
| Housing material | Engineering nylon / thermoplastic, flame retardant |
Description
050301 is a panel socket built for panel and enclosure mounting. The body is moulded in engineering nylon / thermoplastic and is chemical resistant, impact resistant and flame retardant. Terminal connections accept screw or tab fixing as required by the installation.
Ratings and dimensions are taken from the manufacturer catalogue. Schuko type
Applications
- Workshops and machine tools
- Distribution boards and control cabinets
- Commercial and residential electrical installations
- Outdoor and washdown areas (IP54 / IP67 models)
FAQ
What is the rated current and voltage of the German Standard (Schuko) panel socket 050301?
The 050301 is rated 16A 250V with a 2P+E interface and IP54 protection degree.
What does model number 050301 refer to?
050301 is the manufacturer catalogue number for this panel socket in the German Standard (Schuko) range.
Which standard does the 050301 follow?
Designed to the Schuko (German standard) panel-socket format.
Can I order a sample or get a quotation for model 050301?
Yes. Send the model number 050301 and your target quantity through the inquiry form and our sales team will reply with pricing and lead time.
Ordering & support
Model 050301. Mixed orders and OEM branding are available. Request a quotation or contact our sales engineers with your target quantity and destination market.
