Description
Product Overview

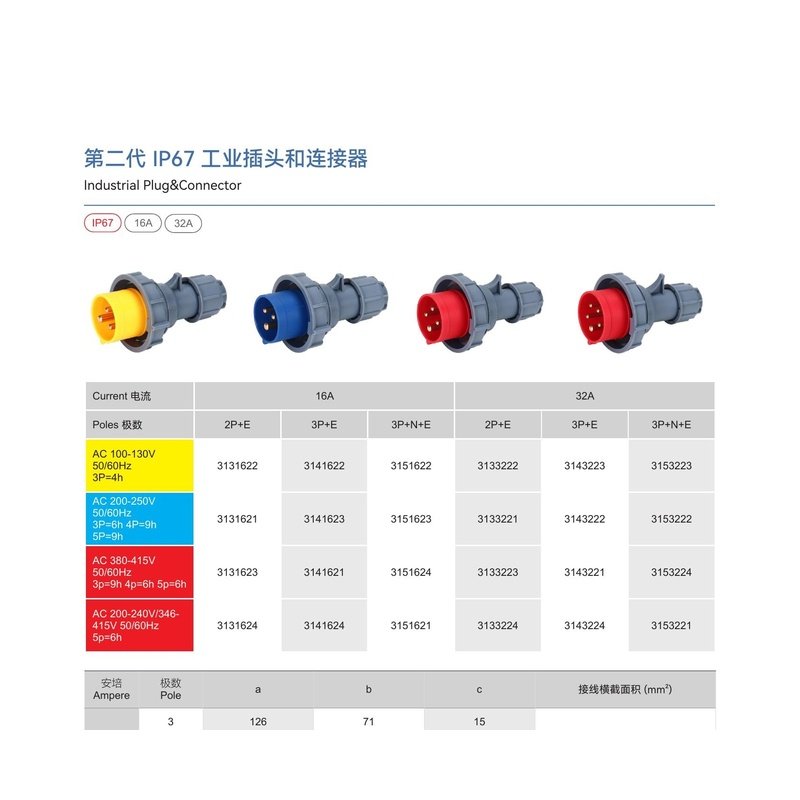

2nd Generation IP67 Industrial Plug & Connector designed for harsh industrial environments. Features IP67 rating – completely dustproof and waterproof. Available in 16A and 32A ratings with 2P+E, 3P+E, and 3P+N+E configurations.
Model Numbers
| Voltage | 16A 2P+E | 16A 3P+E | 16A 3P+N+E | 32A 2P+E | 32A 3P+E | 32A 3P+N+E |
|---|---|---|---|---|---|---|
| AC 100-130V 50/60Hz 3P=4h | 3131622 | 3141622 | 3151622 | 3133222 | 3143223 | 3153223 |
| AC 200-250V 50/60Hz 3P=6h 4P=9h 5P=9h | 3131621 | 3141623 | 3151623 | 3133221 | 3143222 | 3153222 |
| AC 380-415V 50/60Hz 3p=9h 4p=6h 5p=6h | 3131623 | 3141621 | 3151624 | 3133223 | 3143221 | 3153224 |
| AC 200-240V/346-415V 50/60Hz 5p=6h | 3131624 | 3141624 | 3151621 | 3133224 | 3143224 | 3153221 |
Dimensions (mm)
| Ampere | Pole | a | b | c | Wire (mm²) |
|---|---|---|---|---|---|
| 16A | 3 | 126 | 71 | 15 | 1~2.5 |
| 16A | 4 | 131 | 79 | 15 | |
| 16A | 5 | 138 | 87 | 17 | |
| 32A | 3 | 154 | 93 | 22 | 2.5~6 |
| 32A | 4 | 154 | 93 | 22 | |
| 32A | 5 | 160 | 100.5 | 22 |
Certifications
- CE Certified
- CB Scheme
- RoHS Compliant
