Description
Product Overview

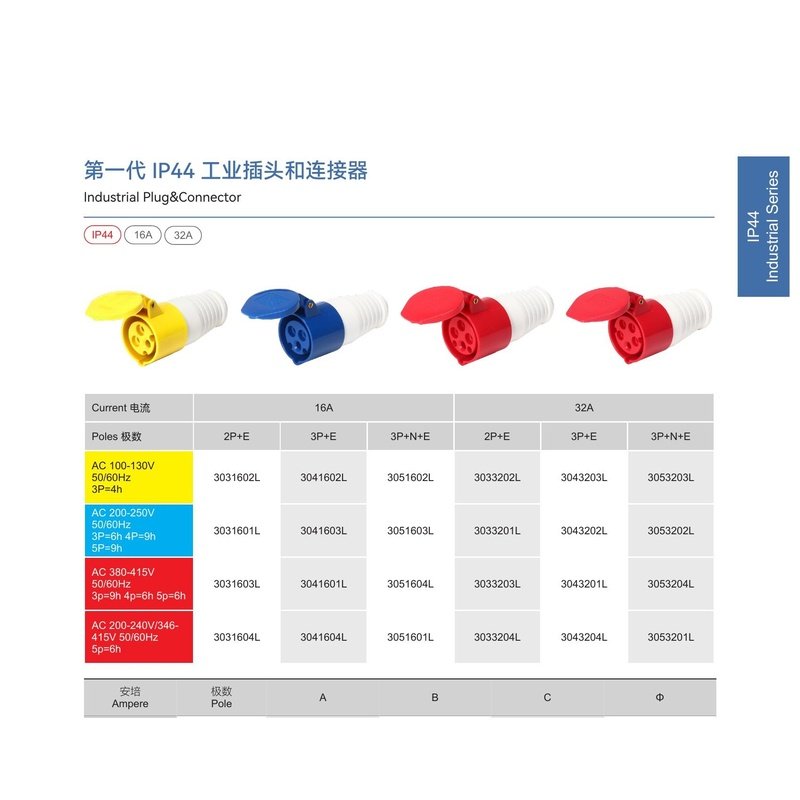

1st Generation IP44 Industrial Connector with protective flap, designed for industrial applications. Available in 16A and 32A ratings with 2P+E, 3P+E, and 3P+N+E configurations. Features hinged flap for extra protection.
Model Numbers
| Voltage | 16A 2P+E | 16A 3P+E | 16A 3P+N+E | 32A 2P+E | 32A 3P+E | 32A 3P+N+E |
|---|---|---|---|---|---|---|
| AC 100-130V 50/60Hz 3P=4h | 3031602L | 3041602L | 3051602L | 3033202L | 3043203L | 3053203L |
| AC 200-250V 50/60Hz 3P=6h 4P=9h 5P=9h | 3031601L | 3041603L | 3051603L | 3033201L | 3043202L | 3053202L |
| AC 380-415V 50/60Hz 3p=9h 4p=6h 5p=6h | 3031603L | 3041601L | 3051604L | 3033203L | 3043201L | 3053204L |
| AC 200-240V/346-415V 50/60Hz 5p=6h | 3031604L | 3041604L | 3051601L | 3033204L | 3043204L | 3053201L |
Dimensions (mm)
| Ampere | Pole | A | B | C | Φ |
|---|---|---|---|---|---|
| 32A | 3 | 189 | 92 | 65 | 10 |
| 32A | 4 | 189 | 92 | 65 | 10 |
| 32A | 5 | 193 | 100 | 70.5 | 10 |
| 16A | 3 | 150 | 68 | 50 | 8 |
| 16A | 4 | 149 | 79 | 56 | 8 |
| 16A | 5 | 179 | 90 | 63 | 10 |
Conductor cross-sectional area: 16A: 1.5-4mm², 32A: 4-6mm²
Certifications
- CE Certified
- CB Scheme
- RoHS Compliant
