Description
Product Overview

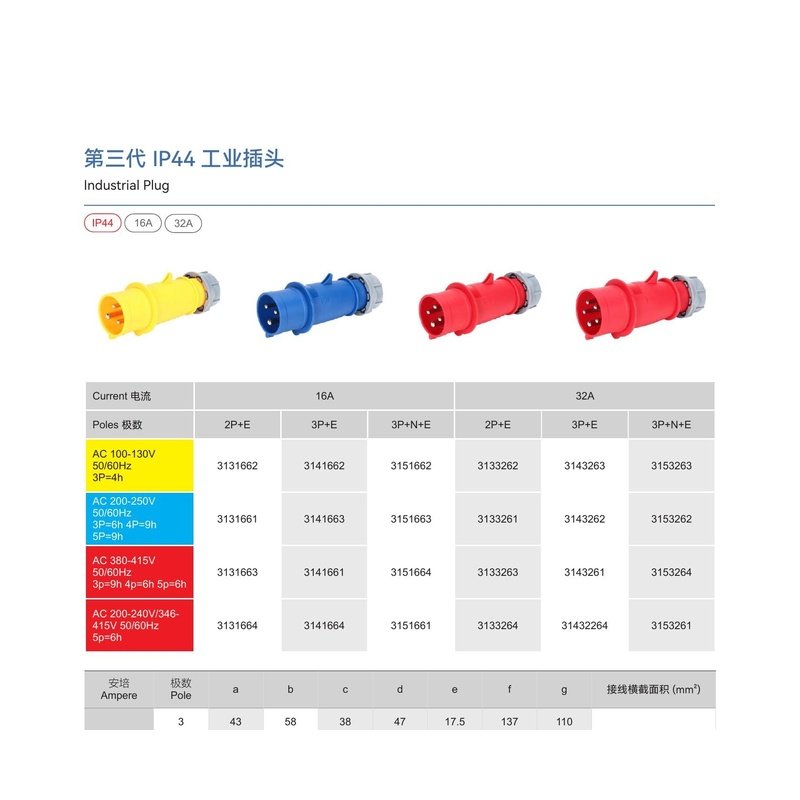

3rd Generation IP44 Industrial Plug designed for industrial applications. Available in 16A and 32A ratings with 2P+E, 3P+E, and 3P+N+E configurations. Features improved design with IP44 ingress protection.
Model Numbers
| Voltage | 16A 2P+E | 16A 3P+E | 16A 3P+N+E | 32A 2P+E | 32A 3P+E | 32A 3P+N+E |
|---|---|---|---|---|---|---|
| AC 100-130V 50/60Hz 3P=4h | 3131662 | 3141662 | 3151662 | 3133262 | 3143263 | 3153263 |
| AC 200-250V 50/60Hz 3P=6h 4P=9h 5P=9h | 3131661 | 3141663 | 3151663 | 3133261 | 3143262 | 3153262 |
| AC 380-415V 50/60Hz 3p=9h 4p=6h 5p=6h | 3131663 | 3141661 | 3151664 | 3133263 | 3143261 | 3153264 |
| AC 200-240V/346-415V 50/60Hz 5p=6h | 3131664 | 3141664 | 3151661 | 3133264 | 31432264 | 3153261 |
Dimensions (mm)
| Ampere | Pole | a | b | c | d | e | f | g | Wire (mm²) |
|---|---|---|---|---|---|---|---|---|---|
| 16A | 3 | 43 | 58 | 38 | 47 | 17.5 | 137 | 110 | 1~2.5 |
| 16A | 4 | 49 | 66 | 43 | 52 | 21.5 | 142 | 119 | |
| 16A | 5 | 56 | 75 | 50 | 60 | 26.5 | 144 | 121 | |
| 32A | 3 | 57 | 80 | 51 | 62 | 25 | 173 | 144 | 2.5~6 |
| 32A | 4 | 57 | 80 | 51 | 62 | 25 | 173 | 144 | |
| 32A | 5 | 63 | 89 | 56 | 68 | 30 | 177 | 148 |
Certifications
- CE Certified
- CB Scheme
- RoHS Compliant
