Description
Product Overview

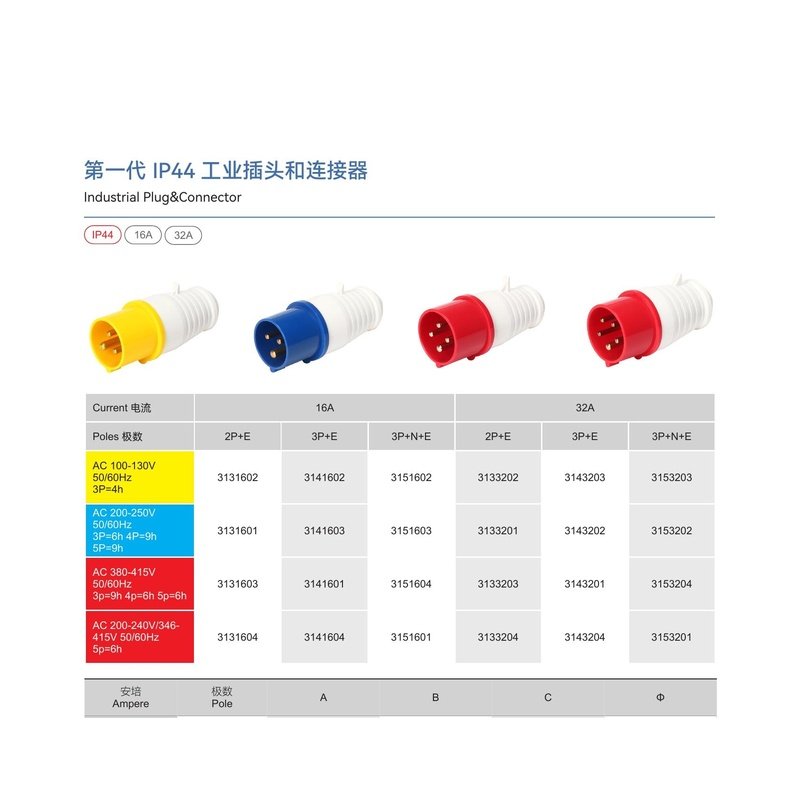

1st Generation IP44 Industrial Plug & Connector designed for industrial applications. Available in 16A and 32A ratings with 2P+E, 3P+E, and 3P+N+E configurations. Features IP44 ingress protection for splash-proof environments.
Model Numbers
| Voltage | 16A 2P+E | 16A 3P+E | 16A 3P+N+E | 32A 2P+E | 32A 3P+E | 32A 3P+N+E |
|---|---|---|---|---|---|---|
| AC 100-130V 50/60Hz 3P=4h | 3131602 | 3141602 | 3151602 | 3133202 | 3143203 | 3153203 |
| AC 200-250V 50/60Hz 3P=6h 4P=9h 5P=9h | 3131601 | 3141603 | 3151603 | 3133201 | 3143202 | 3153202 |
| AC 380-415V 50/60Hz 3p=9h 4p=6h 5p=6h | 3131603 | 3141601 | 3151604 | 3133203 | 3143201 | 3153204 |
| AC 200-240V/346-415V 50/60Hz 5p=6h | 3131604 | 3141604 | 3151601 | 3133204 | 3143204 | 3153201 |
Dimensions (mm)
| Ampere | Pole | A | B | C | Φ |
|---|---|---|---|---|---|
| 32A | 3 | 139 | 75 | 64 | 8 |
| 32A | 4 | 139 | 75 | 64 | 8 |
| 32A | 5 | 139 | 75 | 64 | 8 |
| 16A | 3 | 122 | 59 | 51 | 6 |
| 16A | 4 | 122 | 65 | 55 | 6 |
| 16A | 5 | 122 | 65 | 55 | 6 |
Conductor cross-sectional area: 16A: 1.5-4mm², 32A: 4-6mm²
Certifications
- CE Certified
- CB Scheme
- RoHS Compliant
