Product Overview

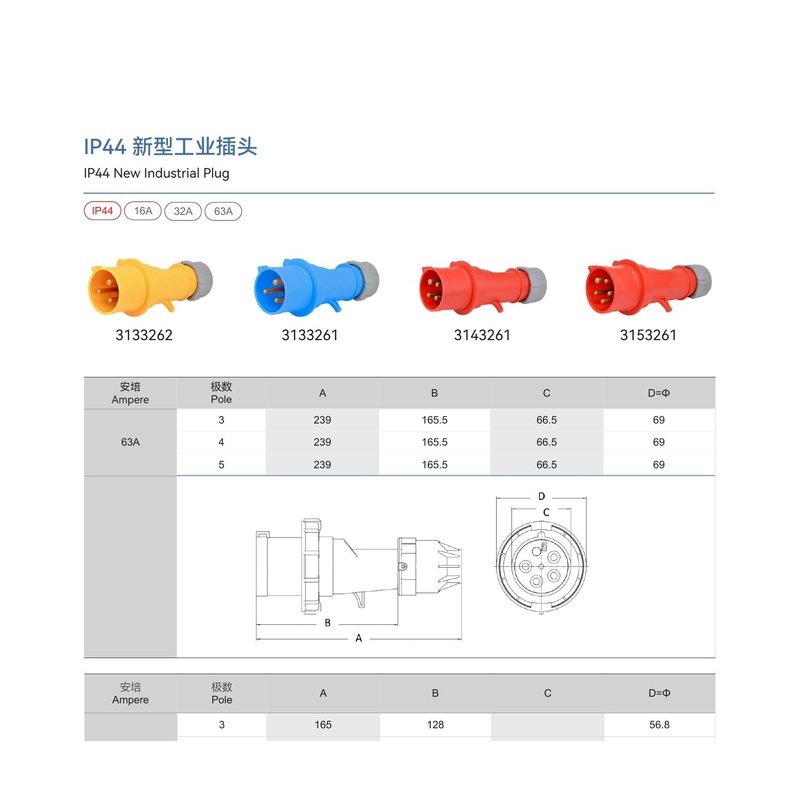

IP44 New Industrial Plug designed for industrial applications. Features IP44 splash-proof protection. Available in 16A, 32A, and 63A ratings. Models: 3133262, 3133261, 3143261, 3153261.
Dimensions – 63A (mm)
| Pole | A | B | C | D=Φ |
|---|---|---|---|---|
| 3 | 239 | 165.5 | 66.5 | 69 |
| 4 | 239 | 165.5 | 66.5 | 69 |
| 5 | 239 | 165.5 | 66.5 | 69 |
Dimensions – 32A/16A (mm)
| Ampere | Pole | A | B | C | D=Φ |
|---|---|---|---|---|---|
| 32A | 3 | 165 | 128 | 45.6 | 56.8 |
| 32A | 4 | 165 | 128 | 45.6 | 56.8 |
| 32A | 5 | 180.2 | 142.6 | 45.6 | 62.9 |
| 16A | 3 | 138.3 | 107.7 | 36.7 | 43.2 |
| 16A | 4 | 138.3 | 109.7 | 36.7 | 49.2 |
| 16A | 5 | 149.2 | 118.7 | 36.7 | 56 |
Conductor cross-sectional area: 16A: 1.5-4mm², 32A: 4-6mm²
Certifications
- CE Certified
- CB Scheme
- RoHS Compliant
