Description
Product Overview

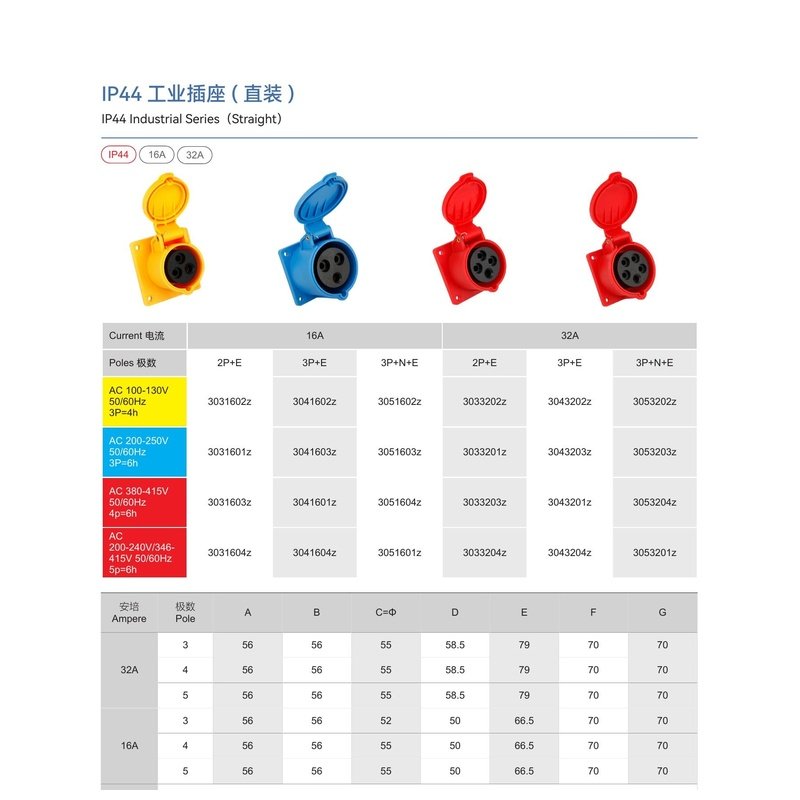

IP44 Industrial Series (Straight) socket designed for industrial applications. Available in 16A and 32A ratings with 2P+E, 3P+E, and 3P+N+E configurations. Features splash-proof IP44 protection with hinged lid.
Model Numbers
| Voltage | 16A 2P+E | 16A 3P+E | 16A 3P+N+E | 32A 2P+E | 32A 3P+E | 32A 3P+N+E |
|---|---|---|---|---|---|---|
| AC 100-130V 50/60Hz 3P=4h | 3031602z | 3041602z | 3051602z | 3033202z | 3043202z | 3053202z |
| AC 200-250V 50/60Hz 3P=6h | 3031601z | 3041603z | 3051603z | 3033201z | 3043203z | 3053203z |
| AC 380-415V 50/60Hz 4p=6h | 3031603z | 3041601z | 3051604z | 3033203z | 3043201z | 3053204z |
| AC 200-240V/346-415V 50/60Hz 5p=6h | 3031604z | 3041604z | 3051601z | 3033204z | 3043204z | 3053201z |
Dimensions (mm)
| Ampere | Pole | A | B | C=Φ | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| 32A | 3 | 56 | 56 | 55 | 58.5 | 79 | 70 | 70 |
| 32A | 4 | 56 | 56 | 55 | 58.5 | 79 | 70 | 70 |
| 32A | 5 | 56 | 56 | 55 | 58.5 | 79 | 70 | 70 |
| 16A | 3 | 56 | 56 | 52 | 50 | 66.5 | 70 | 70 |
| 16A | 4 | 56 | 56 | 55 | 50 | 66.5 | 70 | 70 |
| 16A | 5 | 56 | 56 | 55 | 50 | 66.5 | 70 | 70 |
Conductor cross-sectional area: 16A: 1.5-4mm², 32A: 4-6mm²
Certifications
- CE Certified
- CB Scheme
- RoHS Compliant
