Description
Product Overview

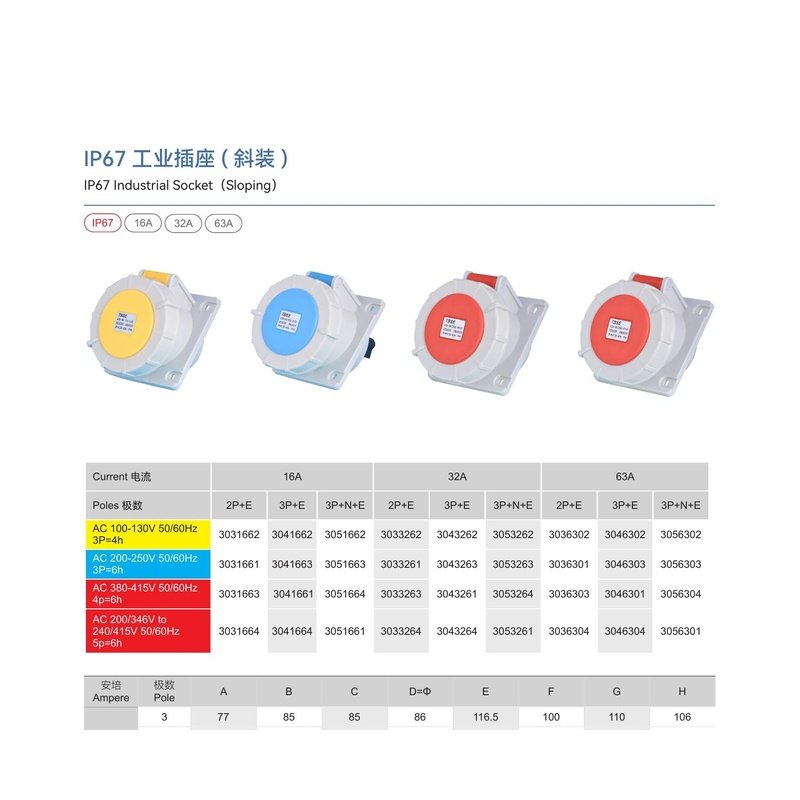

IP67 Industrial Socket (Sloping) designed for harsh industrial environments. Features IP67 rating – completely dustproof and waterproof. Available in 16A, 32A, and 63A ratings with 2P+E, 3P+E, and 3P+N+E configurations. Ideal for outdoor and heavy-duty applications.
Model Numbers
| Voltage | 16A 2P+E | 16A 3P+E | 16A 3P+N+E | 32A 2P+E | 32A 3P+E | 32A 3P+N+E | 63A 2P+E | 63A 3P+E | 63A 3P+N+E |
|---|---|---|---|---|---|---|---|---|---|
| AC 100-130V 50/60Hz 3P=4h | 3031662 | 3041662 | 3051662 | 3033262 | 3043262 | 3053262 | 3036302 | 3046302 | 3056302 |
| AC 200-250V 50/60Hz 3P=6h | 3031661 | 3041663 | 3051663 | 3033261 | 3043263 | 3053263 | 3036301 | 3046303 | 3056303 |
| AC 380-415V 50/60Hz 4p=6h | 3031663 | 3041661 | 3051664 | 3033263 | 3043261 | 3053264 | 3036303 | 3046301 | 3056304 |
| AC 200/346V to 240/415V 50/60Hz 5p=6h | 3031664 | 3041664 | 3051661 | 3033264 | 3043264 | 3053261 | 3036304 | 3046304 | 3056301 |
Dimensions (mm)
| Ampere | Pole | A | B | C | D=Φ | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|
| 63A | 3 | 77 | 85 | 85 | 86 | 116.5 | 100 | 110 | 106 |
| 63A | 4 | 77 | 85 | 85 | 86 | 116.5 | 100 | 110 | 106 |
| 63A | 5 | 77 | 85 | 85 | 86 | 116.5 | 100 | 110 | 106 |
| 32A | 3 | 70 | 70 | 76 | 64 | 84 | 85 | 85 | 89 |
| 32A | 4 | 70 | 70 | 76 | 64 | 84 | 85 | 85 | 89 |
| 32A | 5 | 70 | 70 | 76 | 64 | 84 | 85 | 85 | 89 |
| 16A | 3 | 70 | 70 | 76 | 58 | 73 | 85 | 85 | 68 |
| 16A | 4 | 70 | 70 | 76 | 58 | 73 | 85 | 85 | 68 |
| 16A | 5 | 70 | 70 | 76 | 58 | 73 | 85 | 85 | 68 |
Conductor cross-sectional area: 16A: 1.5-4mm², 32A: 4-6mm²
Certifications
- CE Certified
- CB Scheme
- RoHS Compliant
